Top Frame Multi-functional Aluminum Profile Smooth Flexible Turnover Rack Universal And Expandable Tooling Rack For The Entire Production Line

পণ্যের বর্ণনা

Top frame multi-functional aluminum profile smooth rack | Universal and expandable tooling rack for the entire production line

Product Description

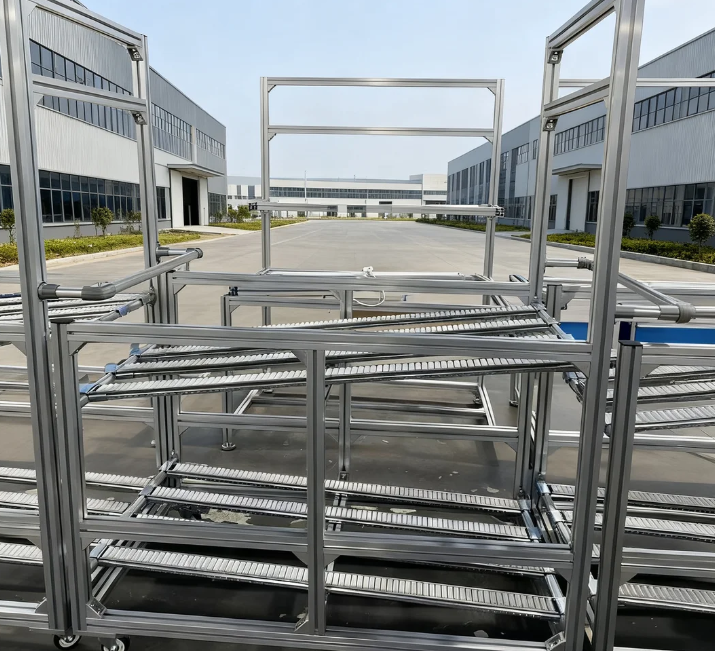

This model of a flexible turnover rack with an elevated double-layer top frame is constructed using standard 4040 industrial aluminum profiles in an integrated modular design. It features a four-layer multi-passageway smooth track layout, along with an elevated double-layer storage top frame and swivel mobile casters. The gravity-based smooth track ensures the efficient flow of materials in an "first-in, first-out" manner. The top double-layer frame can accommodate various accessories such as lighting, sockets, material hooks, and identification boards. The four-layer vertical tracks enable the layered and categorized storage of multiple types of materials, taking into account functions such as material buffering, tool storage, and workstation auxiliary storage. It is suitable for use in all industries for line-side material turnover.

Product features
Four-layer three-dimensional zoned smooth slide: Four layers of independent smooth channels, each layer separated by two channels, can strictly distinguish raw materials, work-in-progress, semi-finished products and defective products. The four-layer large capacity significantly increases the material storage capacity of a single rack.
Adjustable inclined smooth bar: The inclination angle of the slide can be freely adjusted, suitable for different weights of material boxes and carriers. Light and small items automatically slide smoothly, while heavy workpieces remain stable and do not slide out.
Mobile/fixed dual-function structure: Standard equipped with brake-silent casters, and also reserved installation holes for support feet. Can be switched between fixed floor use or all-round mobile use as needed.

Product advantages
One-stop multi-functional integration: Storage, lighting, tool storage, and identification display are all realized in one, reducing the space occupied by scattered brackets at the workstation, and making the production line layout more tidy and unified.
Generalized compatibility for all types of materials: The inclination angle of the slide track can be adjusted, and the width of the passage can be changed. Electronic material boxes, hardware fixtures, and plastic trays can all be stored. It is cross-line and cross-product compatible, eliminating the need to repeatedly purchase multiple material racks.
Zero-cost reuse after renovation: Standardized aluminum profiles have no welding. When relocating the production line or changing the product type, only adding or removing accessories can be done for the renovation. The main frame can be recycled for a long time, and the long-term procurement cost is lower.
Flexible and efficient mobile transfer: The entire frame with wheels can be directly pushed to the machine, inspection station, and packaging section. All batches of materials can be transferred at once, avoiding the need to move materials multiple times.

Application scenario
Full-range 3C assembly line, new energy battery production line, home appliance assembly workshop, line-side of general automation equipment, material storage in injection molding workshop, comprehensive hardware assembly plant area, packaging and sorting assembly line.
