| Place of Origin: | Shenzhen,China |
| পরিচিতিমুলক নাম: | TOP-KING |
| সাক্ষ্যদান: | ISO9001:2008;SGS;RoHS |
| Model Number: | H-1 |
| Minimum Order Quantity: | 1000 pieces |
|---|---|
| মূল্য: | Negotiation |
| Packaging Details: | 300 pieces packing together in a 300*250*152 mm carton |
| Delivery Time: | 5-7 working days with PO and deposit |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 10000 pieces per day |
| Material: | 2.5mm Thickness SPCC | Color: | Black / Silvery |
|---|---|---|---|
| Name: | Metal pipe joint | Usge: | Connecting ABS coated pipe |
| Shape: | Tee type pipe joint | Head code: | round |
| HS code: | 7307990000 | Weight: | 64g/pcs |
| Package: | 300 piece per carton | Package carton size: | 300mm*250mm*152mm |
| Diameter: | 28mm | Combination: | two pieces H-1 pipe joints fixed with one set M6*25 bolt&nut |
| লক্ষণীয় করা: | steel pipe joints,metal tube joints |
||

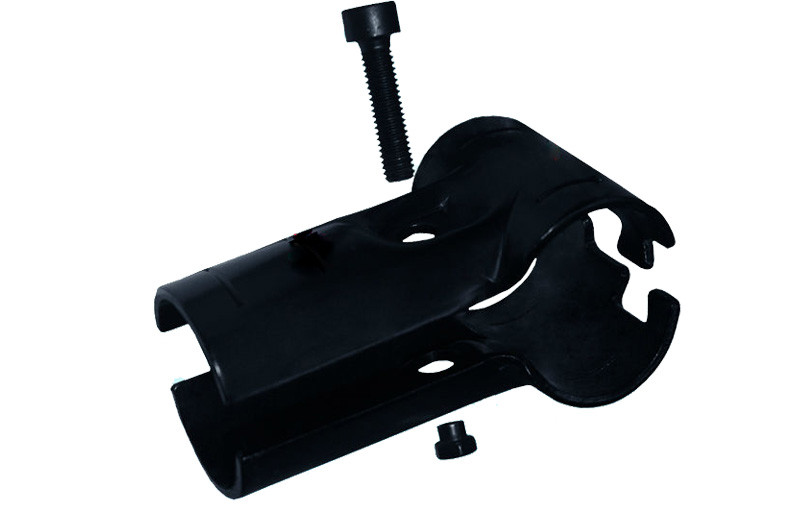

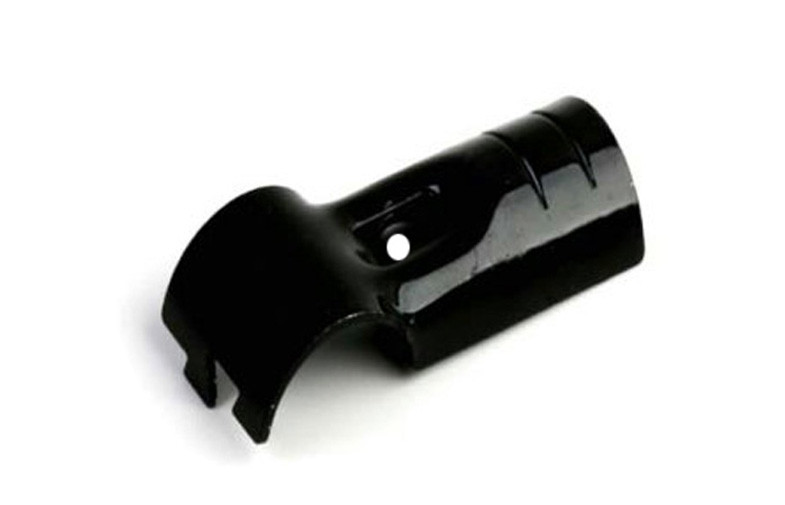

ABS Coated Metal Pipe Joints / Flexible Metal Joint For Racking System
|
1. Material: |
2.5mm Thickness SPCC steel |
|
2. Surface treatment : |
Surface electrophoresis treatment(Black one), Zinc/ Nickel /Chrome plated(Silvery one) |
|
3. production procedure: |
SPCC Steel→ Cut → Model →Stamping →Polish→ Electrophoresis Or Plating |
|
4. Main Combination: |

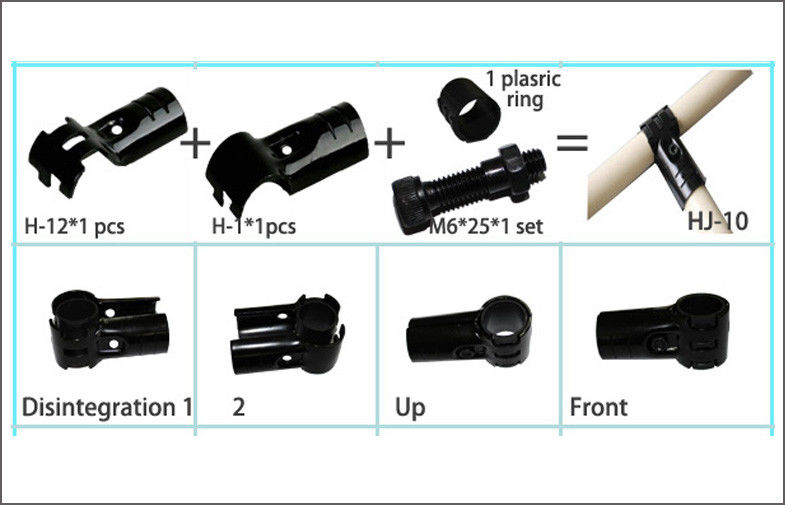

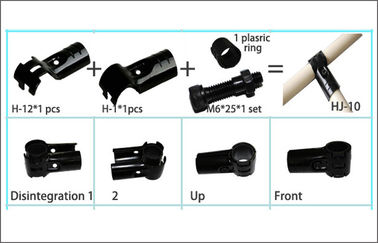

Two pieces of H-1 pipe joints and one set of M6*25 bolt & nut can be assemble one set of metal pipe joint HJ-1(H-2*2+M6*25*1) |
|
5.Weight |
61g/ pcs |
|
6. Item No. |
H-1 |
Product Description :
1. Manufacturing standard:
Using international materials production under strict Jingji quality control and inspection.
2. Production process:
Consistent with the national standard thickness 2.5mm (excluding special type products) SPCC material.
We emphasize on the functions of each product. Cutting corners in manufacturing process is not allowed.
3. Design requirements:
The standard is in accordance with the most favorable specification in the industry. Emphasizes on the
safety of people, articles, and equipment prolong the service life.
4. Testing:
In addition to the regular standard gauge testing, a special gauge testing is added for every process to
ensure the functional indices reach the standard.
joint manufacturer|Metal Joint workbench producers|storage rack system :
H-1 Pipe joint s are safety and durability with the higher reliability.
Shenzhen Jingji Technology Plastic coated pipe is serving the markets by the advantages of the
coated pipe combination. We will continuously research and develop the accessories which have
extended functions. Currently the joints series have hundreds kinds of products.
Metal pipe joint RoHS Test Report
