|Place of Origin:||Shenzhen ,China|
|Minimum Order Quantity:||500 set|
|Packaging Details:||250 pieces packing together in a 300*250*152 mm carton|
|Delivery Time:||15 working days with PO and deposit|
|Payment Terms:||TT, Western Union|
|Supply Ability:||10000 pieces per day|
|Needed parts:||2(H-17D) + 2 (M6-25) + 2 (M6)||Material:||CRS Cold Rolled Steel|
|common uses:||Handle corner||Frequency of use:||High|
|Manufacturing technique:||Pressed and deburring||Reusable parts:||YES|

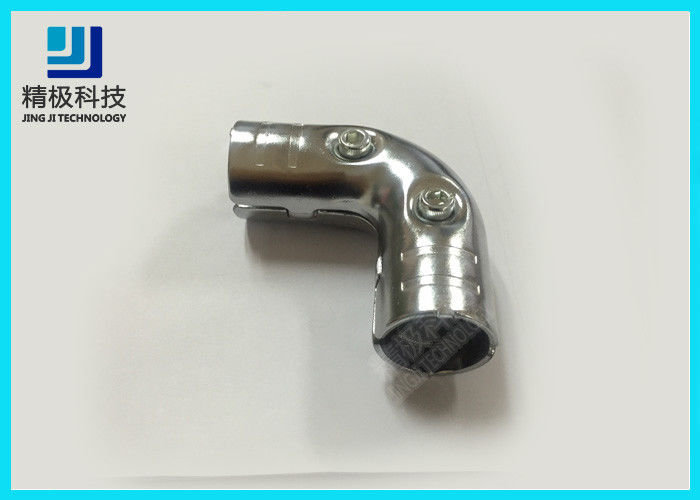

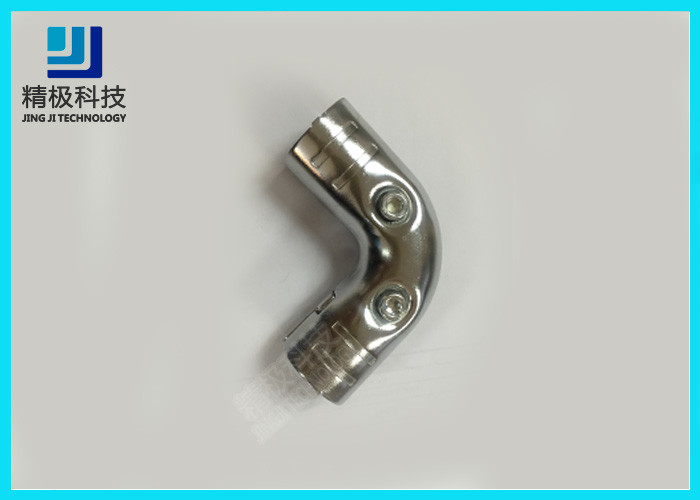

Anti-static Elbow Metal Joint For Flexpipe Creform ESD Pipe Rack System HJ-15D
|Combination:||HJ-15D contains 2 pcs H-17D and 2 set of M6*25 Silvery|
CRS Cold Rolled Steel
Surface treatment :

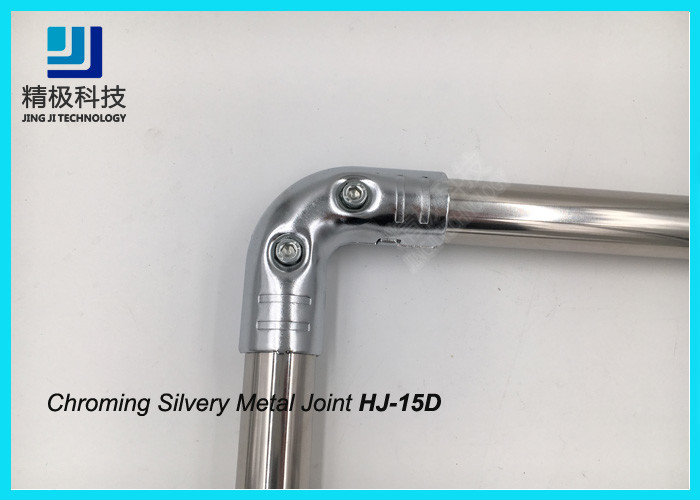

The HJ-15D is a metal anti-static joint used to connect two perpendicular pipes and create a 90-degree rounded corner. This connector is almost always used to build all sorts of ergonomic handles. You could easily create handles with other connectors from the Flexpipe system. This one, however, is designed specifically to do so. Its shape gives your handles a natural curve and a comfortable feeling.
The use of HJ-15D is so unique that when using it, users will automatically recognize that this part of the structure is a handle and that he or she should pull or push it. When combined with the rotating capacity of our hinge joints, this connector can create a rotating handle to facilitate the turning motion of a Flexpipe structure. The HJ-15D is equipped with eight striations for grip and four screw holes for when you need to build a handle that can pull large and heavy carts.

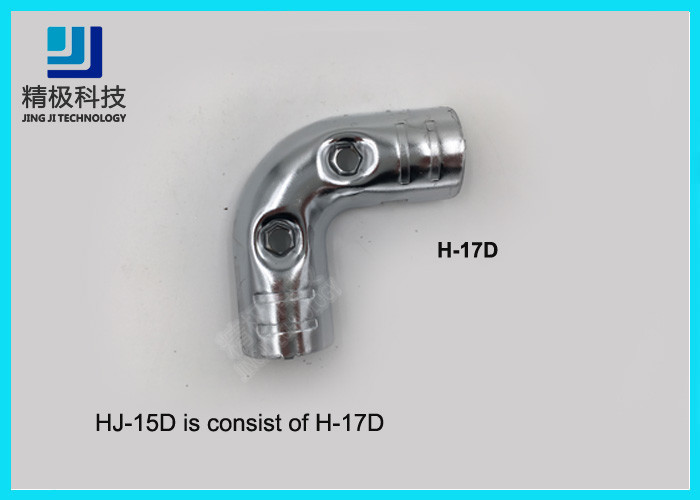

To create an HJ-15D, you need to combine two H-17D with two M6-25 bolts and two M6 nuts.
one HJ-15D is combine with 2 pcs H-17D and 2 set of M6*25 Silvery
It is used for the construction of two compound tubes with a 90 degree Angle, which is mainly used to strengthen the overall strength
Chroming Meta Joints with Black anti-static PE pipe can assemble into ESD workbench or pipe rack system .
HOW TO INSTALL
1- Make sure you have the following parts:
28mm pipes of your choice
1 spanner 5mm tip
1- Take two connectors H-17D and group them around the pipes PE1 and PE2.
2-Take two M6-25 bolts and two M6 nuts and insert them into the corresponding openings. Make sure to put the bolt on the more accessible side.
3- Tighten completely the M6-25 bolts and M6 nuts together until the H-17D attached firmly to both pipes . A force of 9.8 Nm is recommended for this step.
1. Flexible and creative: simple structure, and your creativity can be used.
3. Flexibility: modular structure, easy to restructure, make you always have fresh feeling.
4. Safety: flexible pipe plastic surface to reduce the risk of injury to workers in the workplace
5. Environmental protection: pollution-free production, the components are completely recyclable, and eliminate waste, which is completely in line with the international environmental protection concept
6. Body mechanics: a single M6 hexagon wrench can complete the installation process.The concept of multi-purpose is used to give full play to economic benefits.
AGV-Automatic Guided Vehicles
Operation Overview of the multi-station Knapsack type This Knapsack type of AGV can deliver material with Pallet Wheeled shelf,box,rolloing cylinder,and turnover box on its Top back ,or with a towed carrier,Through reading the position Mark,It can choose the stations automatically to stop ,with 300mm min,turning radius,and +-10mm braking accuracy.it is equipped With a sector scanning obstacle sensor and mechanical anti-collision Device.
Multiple AGV can be combined together to be a flexible Production System,instead of the traditional assembly line.
ESD Workstation/Flow Rack
It built with ESD pipe, nickel plated joints and ESD casters have hydraulic lift assist work surface and mobile flow rack for easy restocking for static sensitive product assembly.
To eliminate wasted space promoting swift movement from station to station without excessive steps and minimizing reach distances.
It is for fulfilling orders of packaged parts in cell or shipping department accommodates two associates and supplies while also providing expandability.
Why choose our products?
1) We are direct manufcture of pipe rack system, we produce all series of material for pipe rack system, such as metal joint, plastic joint, lean pipe, roller track, accessory for pipe rack system.
2) We produce this serises products metal pipe joint for more than 10 years, the earliesr factory to produce pipe rack system in Cina.
Shenzhen Jingji Technology Co., Ltd.(TOP-KING HK LIMITED ) Is a professional manufactuer for design, production and sale of industrial storage equipment, flexible production equipment, automation equipment and other kinds of instruments and gauges. beside, the company distributes anti-static peripherals.
We provide a comprehensive logistics plan in order to avoid waste of resources in course of purchase and supply chain by manufactures. It is our ultimate goal to provide all customers with full service, to meet exact demands of customers. To improve product quality, and to enhance customer satisfaction storage annd logistics as in automation industy.We are the Direct Material Manufacturer and supplier of pipe and joint system, which is ergonomic and dynamic.
If you have any questions or needs,just please feel free to contact us any time
