|Place of Origin:||Shenzhen ,China|
|Minimum Order Quantity:||500 set|
|Packaging Details:||250 pieces packing together in a 300*250*152 mm carton|
|Delivery Time:||15 working days with PO and deposit|
|Payment Terms:||TT, Western Union|
|Supply Ability:||10000 pieces per day|
|Name:||Metal parallel hinged joint set||Material:||CRS Cold Rolled Steel|
|Head code:||Round||Diameter:||28 mm|
|Frequency of use:||Very Low||Reusable parts:||YES|

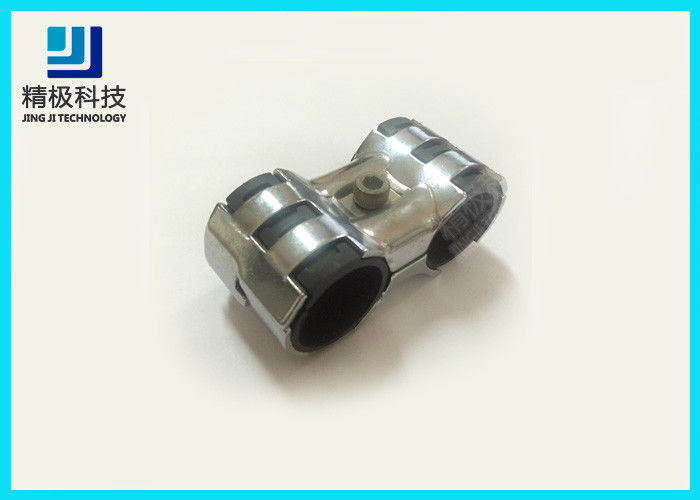

Metal Parallel Hinged Joint Set Metal Swivel Joint For Rotating In Pipe Rack System HJ-8D

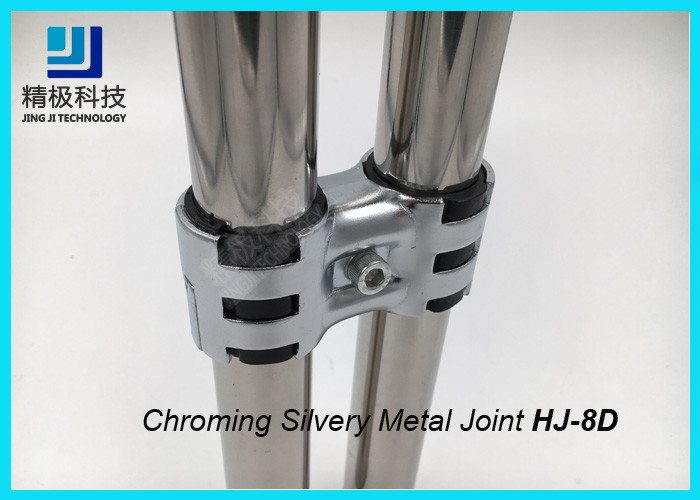

The HJ-8D is a double hinge joint that makes two parallel pipes around each other. This connector is mostly used to build folding tables, doors, and other movable modules with an almost full 360-degree radius. This range can be reduced quickly by obstructive pipes. Be sure to plan your design to take advantage of the full radius capacity or to enable just a specific range of the hinges.
Even if the HJ-8D allows you to build similar modules to the ones using the HJ-10D, the circumstances of application for the two is not the same. The fact that one allows the rotation of parallel pipes and the other of perpendicular pipes makes them useful in very different setups. Like the HJ-10D, this joint will slide on the two pipes if you don't immobilize them. Sliding the H-19D is sometimes a good thing but may not always be what you want. We recommend that you check the tips and tricks section of this product page to learn how to immobilize the connector and when to do so.

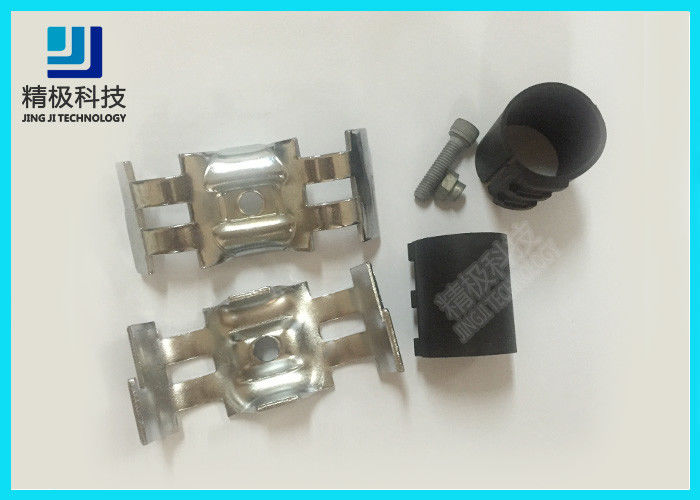

To assemble an HJ-8D, you need to assemble two H-13D around two plastic HINGE with one M6-25 bolt and one M6 nut.
|Metal parallel hinged joint set|
|Combination:||HJ-8D contains 2 pcs of H-13D ,2 set of M6*25 Silvery|
CRS Cold Rolled Steel
Surface treatment :

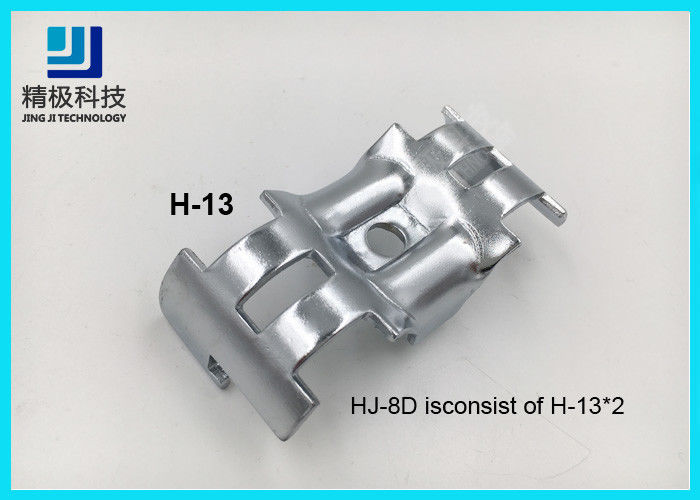

one HJ-8D is combine with 2 pcs HJ-13D and 2 set of M6*25 Silvery bolt and nut
It is Used for connecting two composite pipes to a movable structure, mainly used for hinge structure
Chroming Meta Joints with Black anti-static PE pipe can assemble into ESD workbench or pipe rack system .
Flexible work table, storage shelf, revolving car, display rack, wardrobe, kanban, material rack and so on.
It is applicable to any industry and individual
It adopts 23mm cold rolled sheet to be cut into strips and is made by stamping with many process,
then polishing the paint, or chrome plating, or the surface treatment of the electric surge.
1. The flexible pipe is composed of high-quality steel tube with high quality surface treatment.
2. The outer surface is composed of special plastic layer and inner surface coating.
3. The product has the advantages of beautiful appearance, wear-resisting, bright luster and pollution-free.
4. It is an ideal substitute for stainless steel products.
5. Surface special treatment without acute Angle, completely avoid causing the human body, accessories and accessories, and other items between the stabbing
1. Flexible and creative: simple structure, and your creativity can be used.
3. Flexibility: modular structure, easy to restructure, make you always have fresh feeling.
4. Safety: flexible pipe plastic surface to reduce the risk of injury to workers in the workplace
5. Environmental protection: pollution-free production, the components are completely recyclable, and eliminate waste, which is completely in line with the international environmental protection concept
6. Body mechanics: a single M6 hexagon wrench can complete the installation process.The concept of multi-purpose is used to give full play to economic benefits.
Why choose our products?
1) We are direct manufcture of pipe rack system, we produce all series of material for pipe rack system, such as metal joint, plastic joint, lean pipe, roller track, accessory for pipe rack system.
2) We produce this serises products metal pipe joint for more than 10 years, the earliesr factory to produce pipe rack system in Cina.
Shenzhen Jingji Technology Co., Ltd.(TOP-KING HK LIMITED ) Is a professional manufactuer for design, production and sale of industrial storage equipment, flexible production equipment, automation equipment and other kinds of instruments and gauges. beside, the company distributes anti-static peripherals.
We provide a comprehensive logistics plan in order to avoid waste of resources in course of purchase and supply chain by manufactures. It is our ultimate goal to provide all customers with full service, to meet exact demands of customers. To improve product quality, and to enhance customer satisfaction storage annd logistics as in automation industy.We are the Direct Material Manufacturer and supplier of pipe and joint system, which is ergonomic and dynamic.
The modular product has been on the market for more than 50 years now. It is a product that has proven itself in the automotive industry and with lean manufacturing.
Many individual believe that it is an expensive and complicated product, reserved for large manufacturers.
Well, we want to change that! We are dedicated to offering the best value for your money and also to share all our design and assembly knowledge. We want to make the product affordable to all manufacturers who want to boost their productivity and gain flexibility!
