|Place of Origin:||Shenzhen ,China|
|Minimum Order Quantity:||500 set|
|Packaging Details:||pack by carton ,depends on order qty to choose carton size|
|Delivery Time:||15 working days with PO and deposit|
|Supply Ability:||10000 pieces per day|
|Material:||CRS Cold Rolled Steel||Thickness:||23mm|
|Applied:||For PE coated steel pipe dia 28mm||Application::||Workbench, production line, logistic rack, warehouse rack.|
Clamp connector Black Metal Joints Between PE Pipe and Composite Plate HJ-13
|Name||Clamp Black Metal Joints|

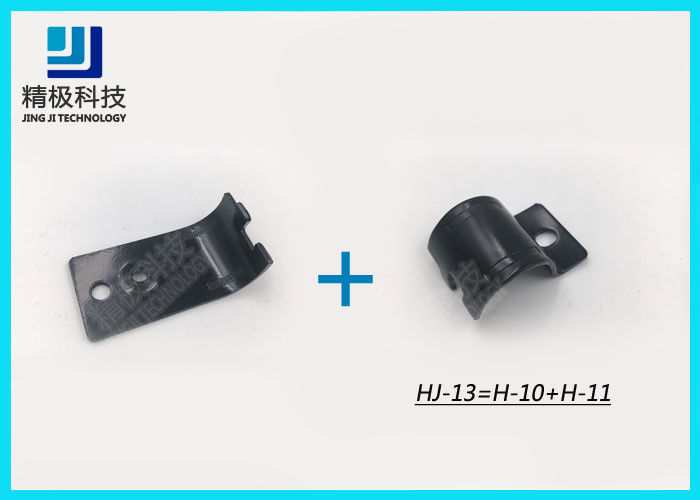

|Combination||HJ-13 contains 1 pcs H-10 and 1 pcs of H-11|
CRS Cold Rolled Steel

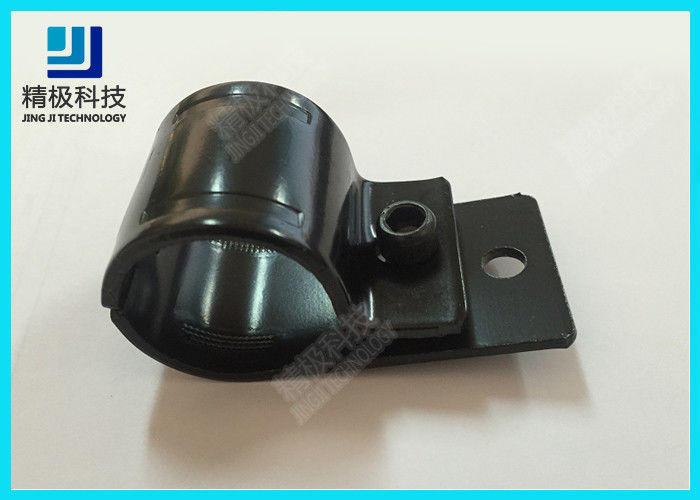

Metal joint is black, surface electrophoresis treatment, thickness of 23mm.
The product is used with lean pipe, according to different combination process, which can realize the JIT production management concept, with efficient logistics, DIY production pattern practice the most advanced industrial layout, pipe and fitting the flexible combination of absolute modern enterprise product diversification to meet the demand of the manufacture.
It can meet the specification of any item, load mode, so that the load, security and other requirements, because the use of multiple tube is one of the most easy to understand and simple production concept.
Metal joints and lean pipe can be combined into various flexible working tables, storage racks, revolving vehicles, etc., which can be easily disassembled, easy to assemble, and improve production efficiency.It is designed for the assembly, production, maintenance and operation of the factory.

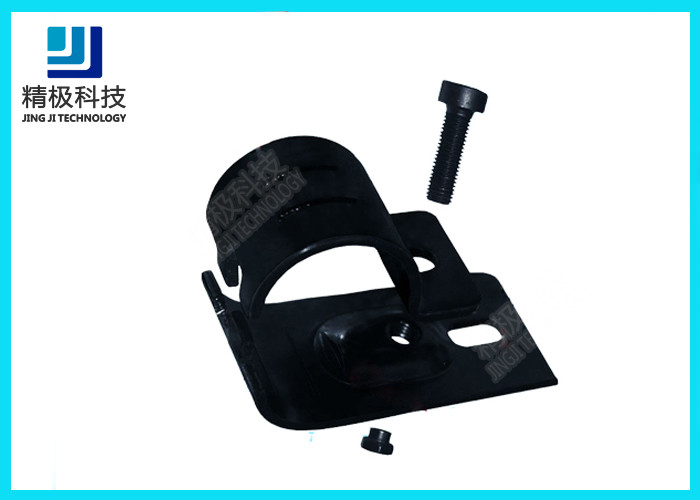

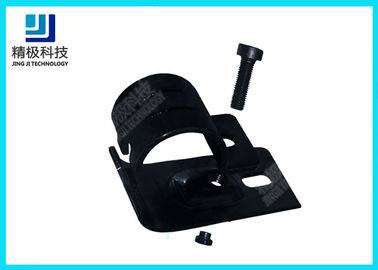

One HJ-13 is combine with 1 pcs of H-10 and 1 pcs of H-11 and 1 set of M6*25 nut and screw

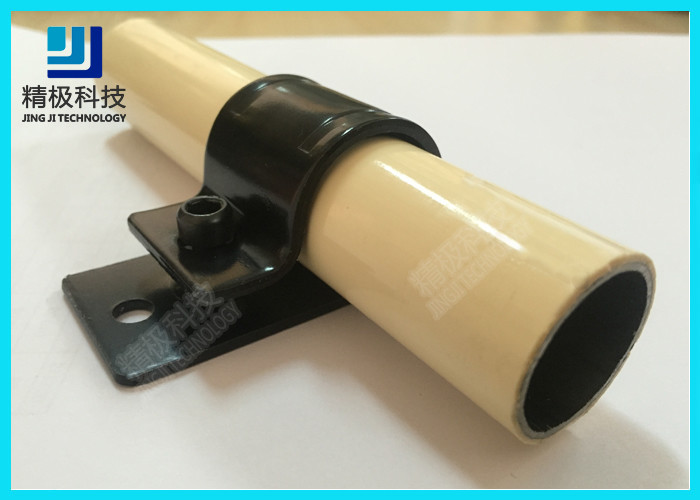

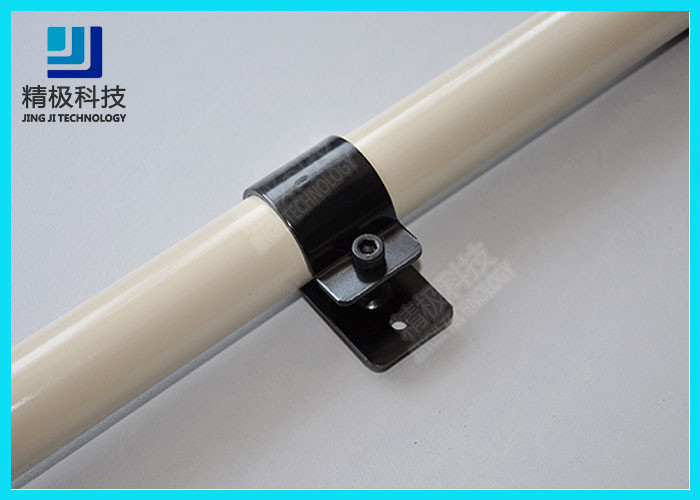

It is used for the strong connection between the composite pipe and the plate.
The assembly and decomposition of bolts and nuts are free metal connections.
Metal alloys are fixed and fixed forms of bolts and nuts. decomposition can be free.
The metal joints product with wire rod (PE lean pipe) can be combined into various kinds of flexible workbench, storage shelves, revolving cars, etc., and is easy to remove, flexible assembly, improve production efficiency, etc.It is designed for the assembly, production, maintenance and operation of the factory.
1. Simple and easy to use
4. Strong resistance to corrosion
5. Glossy surface
6. Suitable for various pipe systems or roller tracks
7. Robust design
8. Long service life
9. Sturdy construction in pipe racks
10. High quality, competitive price, excellent service, advance and professional techniques
11. Scope of application: Factory production line, Office desk system, Storage shelves, Display able, Trolley, etc.
Principle of assemble:
1. First the side with films after the install link rod
2. First the install link rod bearing rod With two ends before they are installed in the middle
3. All between chuck and can install according to design requirements in place to ensure that each clamp screw in place Can't use hard and chuck can hammer ,when holds pillar to ensure the perpendicular to the ground, in order to avoid the wire rod rack uneven force causing damage
4. when cutting cladding can pay attention to the cutting deformation can artifacts may have special purposes.
With Metal joints and lean pipe can use for any assembly of building blocks, flexible structure, beautiful appearance, no pollution, can change the working environment, meet the requirements.The magic change, make it have extremely strong material processing ability.The value of resources is more valuable to show the value of reuse.In accordance with human mechanics, only one M6 inner hexagon can be used to complete the installation process.Can meet the transportation and storage of all kinds of delicate sensitive parts.
1. The flexible system of line lean pipe and metal joints is easy to build and convenient and fast
2. Flexible flexible system, flexible and flexible form.
3. Product environmental safety.
4. Improve work environment and improve work efficiency.
5. Light structure, easy to handle, ergonomic principles.
Why choose our products?
1 We are Direct Material manufacturer and supplier of pipe and joint system which is ergonomic and dynamic;
2 This metal joint is a part of Material handing equipments to contact OD 28mm pipe as 3 ways structure of Pipe and Joint system/Lean pipe joint system/Lean tube as lean manufacturing;
3 For Modular pipe structures as Lean Manufacturing standard pipe and joint system.
4 Our products are comprehensive for one-stop sales.
Shenzhen Jingji Technology Co., Ltd.(TOP-KING HK LIMITED ) Is a professional manufactuer for design, production and sale of industrial storage equipment, flexible production equipment, automation equipment and other kinds of instruments and gauges. beside, the company distributes anti-static peripherals.
We provide a comprehensive logistics plan in order to avoid waste of resources in course of purchase and supply chain by manufactures. It is our ultimate goal to provide all customers with full service, to meet exact demands of customers. To improve product quality, and to enhance customer satisfaction storage annd logistics as in automation industy.We are the Direct Material Manufacturer and supplier of pipe and joint system, which is ergonomic and dynamic.
